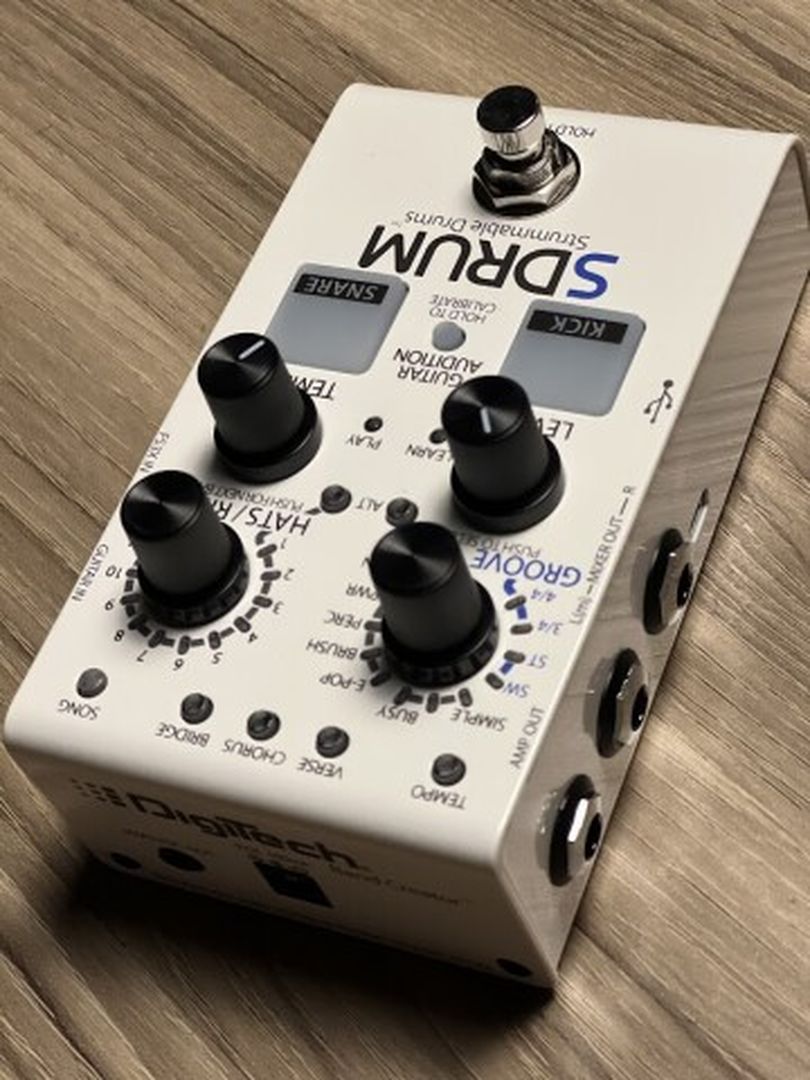

digitech sdrum strummable drums pedal Digitech SDrum-V-04 Strummable Drums – nafiriguitar.comSDRUM is the worlds first intelligent drum machine for guitarists and bassists. By simply scratching across your guitar strings, you teach the SDRUM a kick snare pattern that forms the foundation of the beat you want to hear. Based on this pattern, the SDRUM supplies a professional sounding drum beat with different embellishments and variations to perfectly complement your beat. Gone are the days of having your creative flow disrupted by searching

SDRUM is the world’s first intelligent drum machine for guitarists and bassists. By simply scratching across your guitar strings, you teach the SDRUM a kick snare pattern that forms the foundation of the beat you want to hear. Based on this pattern, the SDRUM supplies a professional sounding drum beat with different embellishments and variations to perfectly complement your beat. Gone are the days of having your creative flow disrupted by searching through lists in a frustrating attempt to find the beat you want.

The SDRUM stores up to 36 different songs. Beats are played from a choice of 5 different kits covering a wide range of genres. The pedal also supports three different parts (e.g. verse/chorus/bridge) for each song that can be switched on the fly for enhancing live performances and exploring song ideas.

SDRUM is the fastest way to go from a beat idea to a working drum track.

BeatScratch™ Technology

BeatScratch™ Technology lets you teach the SDrum a drum pattern by strumming your strings

Groove / Kit Knob

Select between 5 different kits, 3 different embellishment levels (simple to busy), and various groove styles and time signatures to customize the drumbeats

Learns Up to 3 Different Song Parts

3 parts per song each with 3 different intensities for realistic transitions from Verse to Chorus to Bridge.

General Specifications

• CONTROLS : Groove/Kit, Hats/Rides, Level, Tempo
• BACKLIT BUTTONS : Tempo, Verse, Chorus, Bridge, Song, Alt (Kit), Alt (Hats/Rides), Guitar Audition
• PADS : Kick, Snare
• FOOTSWITCHES : Main Footswitch
• LEDS : Learn, Play
• JACKS : Guitar In, FS3X In, Amp Out, Mixer Out L(m), Mixer Out R, JamSync Out
• OTHER : Mini USB port

Inputs

• GUITAR INPUT : Type: Unbalanced, 1/4" TS / Impedance: 1 MΩ / Max Input: +8 dBu
• FS3X INPUT : Type: 1/4" TRS (compatible with DigiTech FS3X)

Outputs

• AMP OUTPUT : Type: Unbalanced, 1/4" TS / Impedance: 1 kΩ / Frequency Response: 20 Hz–20 kHz
• MIXER L/R OUTPUTS : Type: Impedance balanced, 1/4" TRS / Impedance: 1 kΩ / Max Output: +19 dBu / Frequency Response: 20 Hz–20 kHz
• JAMSYNC OUTPUTS : Type: 1/8" TRS

Performance

• BIT DEPTH : 24-bit
• SAMPLE RATE : 44.1 kHz
• SIGNAL-TO-NOISE RATIO : ≥108 dB, A-weighted
• THD + NOISE : 0.004% @ 1 kHz

Storage

• MAXIMUM BARS : 4 bars per song part
• MAXIMUM PARTS : 3 per song
• MAXIMUM SONGS : 36

USB

• TYPE : Mini-B, USB 2.0

Physical

• DIMENSIONS : 5.25” (L) x 3” (W) x 2.45” (H) / 133.4 mm (L) x 76.2 mm (W) x 62.2 mm (H)
• UNIT WEIGHT : 1.14 lb / 0.52 kg
• SHIPPING WEIGHT : 1.92 lb / 0.87 kg

Power

• POWER REQUIREMENTS : 9 VDC external power adapter
• POWER CONSUMPTION : <5 W
• CURRENT DRAW : 500 mA
• POWER ADAPTER MODEL : PS0913DC-04 (US, JA, EU, AU, UK)
• POWER ADAPTER OUTPUT : 9 VDC 1.3 A
