Description

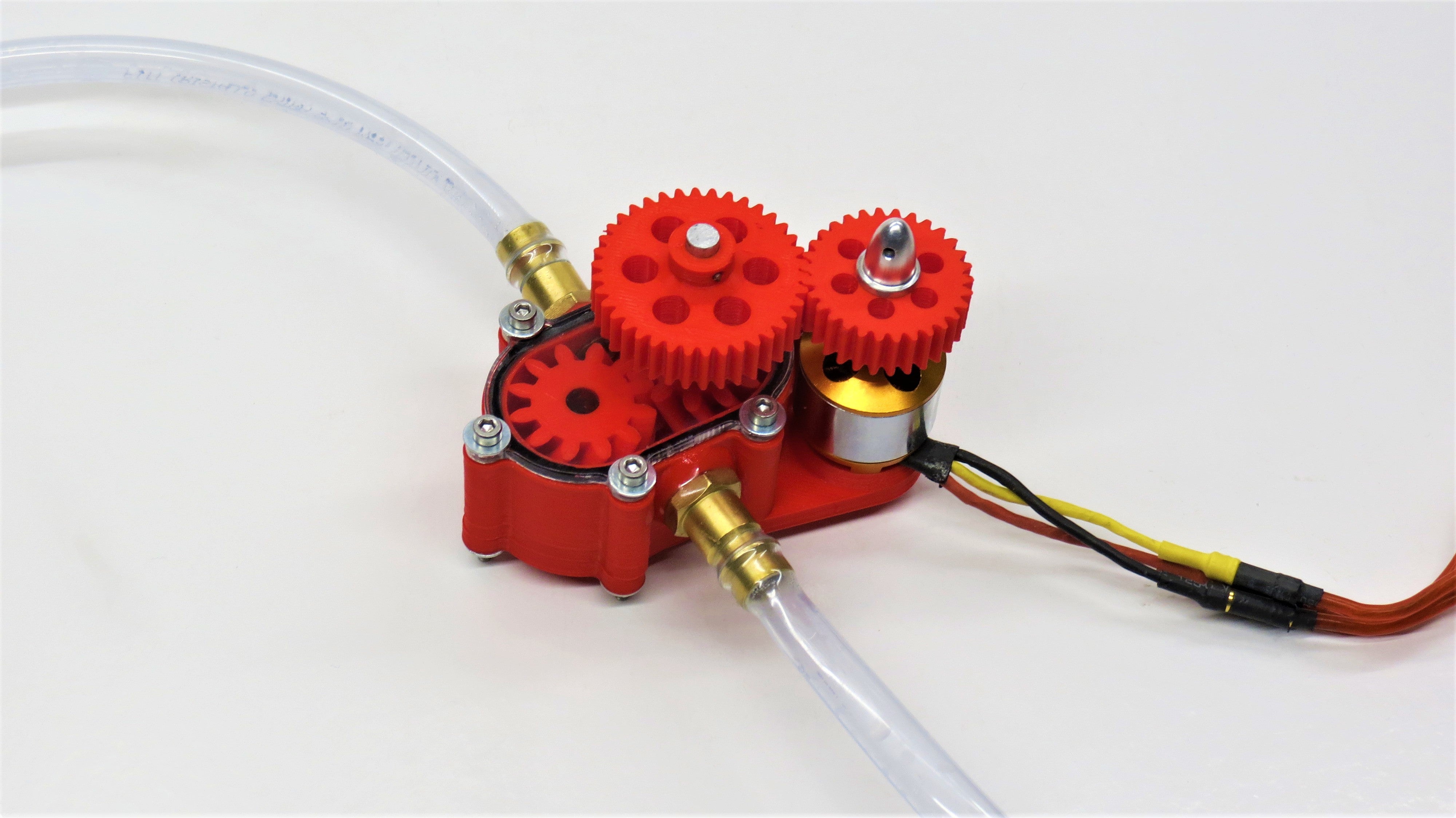

gear pump 3d model 3D-printable double helical gear pump - water pumpSummary Video: Recently saw a video of Boston Dynamics it's Atlas robot doing all kind of awesome stuff and learned that the robots were fully hydraulic. I was wondering if it would be possible to build a fully 3D printable hydraulic system that's watertight and can be used for robotics. This double helical gear pump is the first component of the fully 3D printable hydraulic system. Note: The pump is watertight when using the 3D printed lid with seal
Video:
Recently saw a video of Boston Dynamics it's Atlas robot doing all kind of awesome stuff and learned that the robots were fully hydraulic. I was wondering if it would be possible to build a fully 3D-printable hydraulic system that's watertight and can be used for robotics. This double helical gear pump is the first component of the fully 3D-printable hydraulic system.
Note: The pump is watertight when using the 3D-printed lid with seal and seal tensioner. at some point in the video you can see me using a laser cut plexi lid, this one is only used for demo reasons, doesn't have a seal and so obviously leaks.
The STL-files option includes these files:
-Individual STL-files
The Fusion 360 source files option includes these formats:
-.f3d
-.obj
-.stp/.step
-.3mf
-.fbx
-.skp
-.smt
-.ipt files
Part list, schematics, code and more info about this project can be found here: 3D-printable double helical gear pump *watertight* – bbprojects
Printer used:
Flsun Super Racer
Supports:
Yes
Resolution:
0.2
Infill:
25-30%
The 3D-printers, tools and materials I'm using for these projects can be found here: Tools and materials – bbprojects
Note: This is not a physical product. When you're purchasing the STL or Fusion 360 source files you will be able to download these files. A physical product will not be send to your address.
All my designs are licensed according to the CC BY-NC-ND, unless specified differently. license: https://creativecommons.org/licenses/by-nc-nd/4.0/
